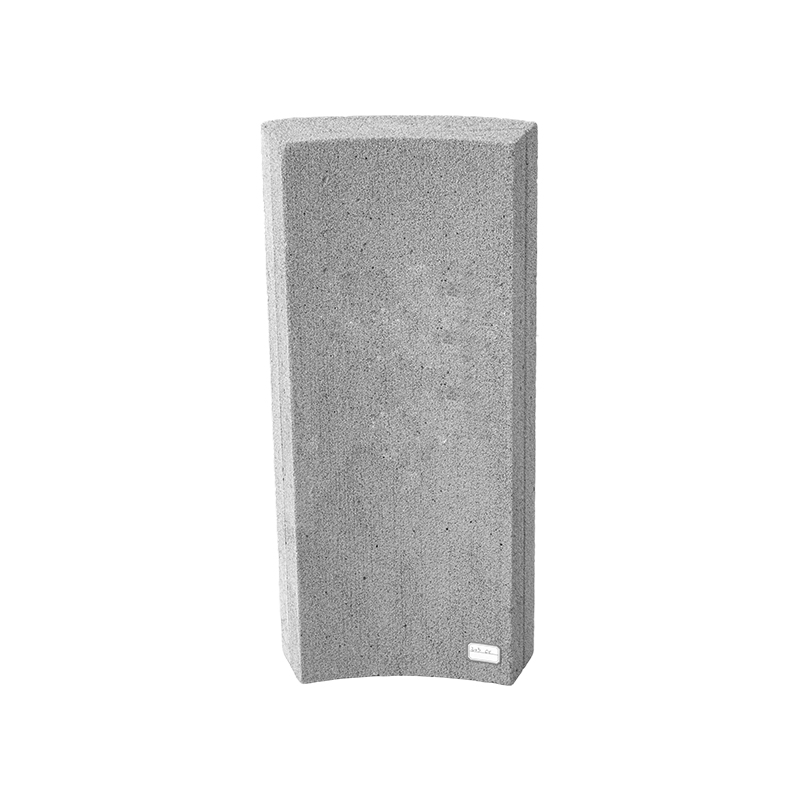

Foamed Calcium Silicate (230# )

Product Introduction:

Foamed calcium silicate (type 230) is a high-performance inorganic rigid thermal insulation material designed for applications such as construction, industrial equipment and pipeline insulation. It is made of silicate gelling materials, mineral admixtures and foaming agents, and is made through advanced processes such as chemical foaming, autoclave curing and drying, and has excellent physical and chemical properties.

Foamed calcium silicate (230#) material performance parameters
Project Index Detection basis
Apparent density / ( kg / m3 ) 200 < Density ≤260 GB/T 5486 - 2008
Strength (MPa)  Compressive strength ≥0.70
Flexural strength ≥0.35
Thermal conductivity W/(m⋅K)  25°C ≤0.058 GB/T 10294 - 2008
100°C ≤0.067 GB/T 10295 - 2008
200°C ≤0.079
300°C ≤0.090
400°C ≤0.103 GB/T 10297 - 2008
500°C ≤0.117
600°C ≤0.133
Moisture content ≤7.5% GB/T 5486 - 2008
Dimensional stability ( 23°C, 50% , 48 h ) ≤1.0% GB/T 30806 - 2014
Combustion performance A1 Non-flammable GB/T 8624 - 2012
Uniform temperature burning performance (600°C, 24h) Linear shrinkage ≤2% GB/T 5486 - 2008
Quality loss rate ≤10%
 crack No through cracks
Residual compressive strength (MPa) ≥0.40

Size Specification:

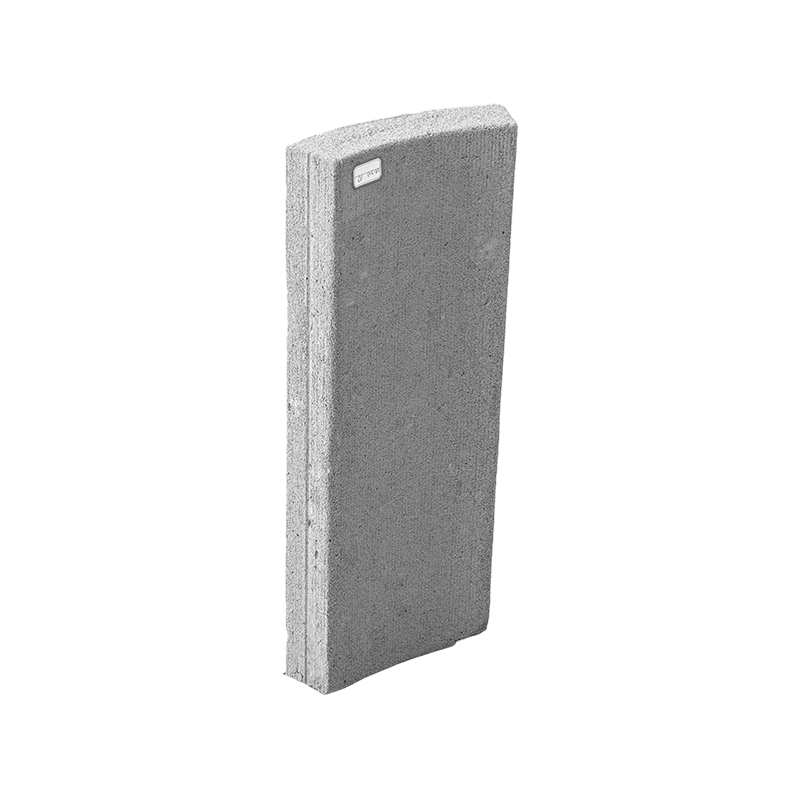

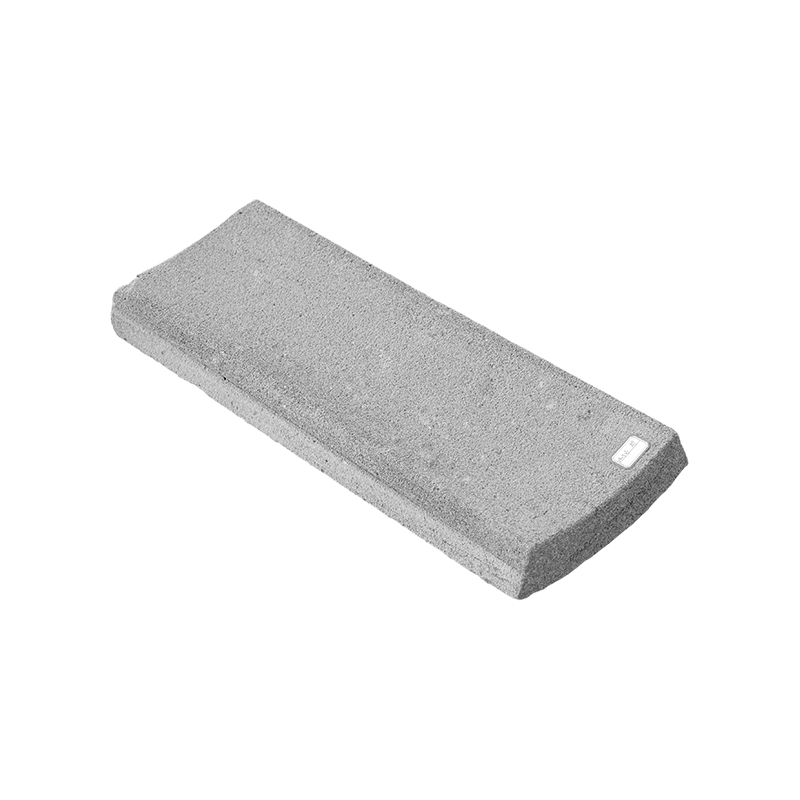

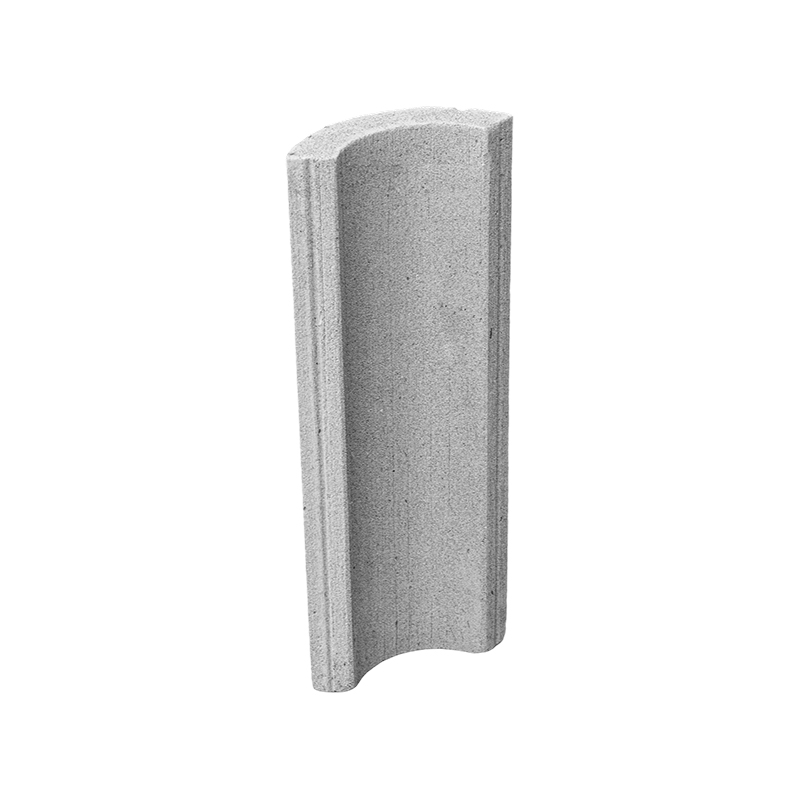

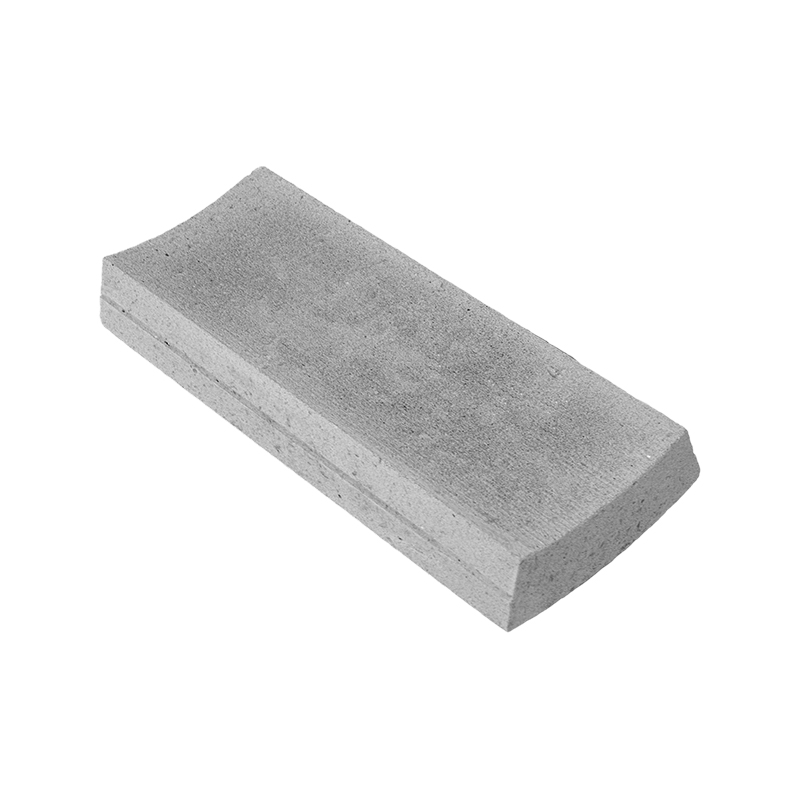

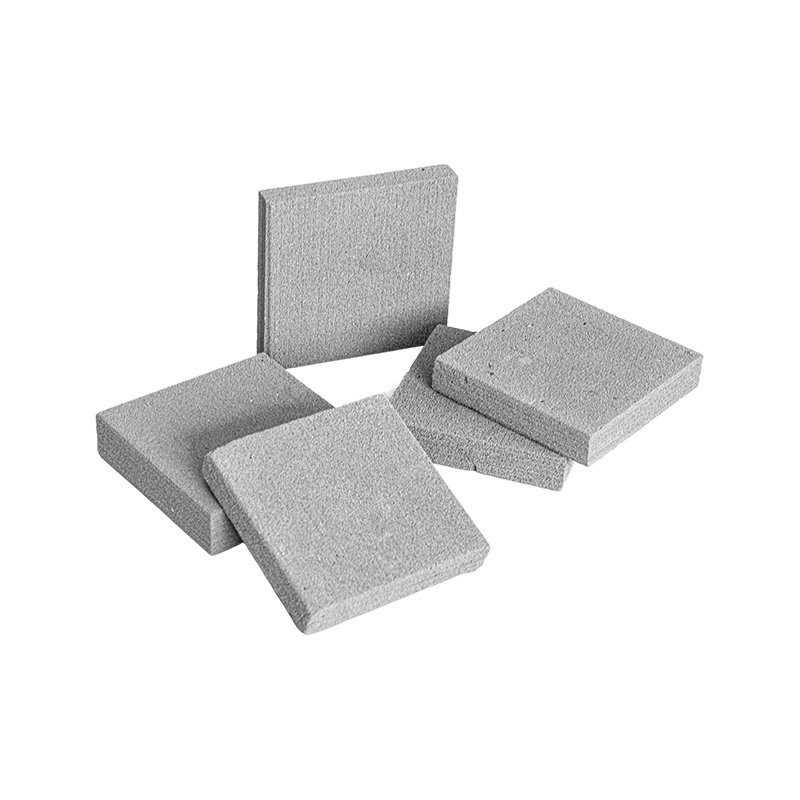

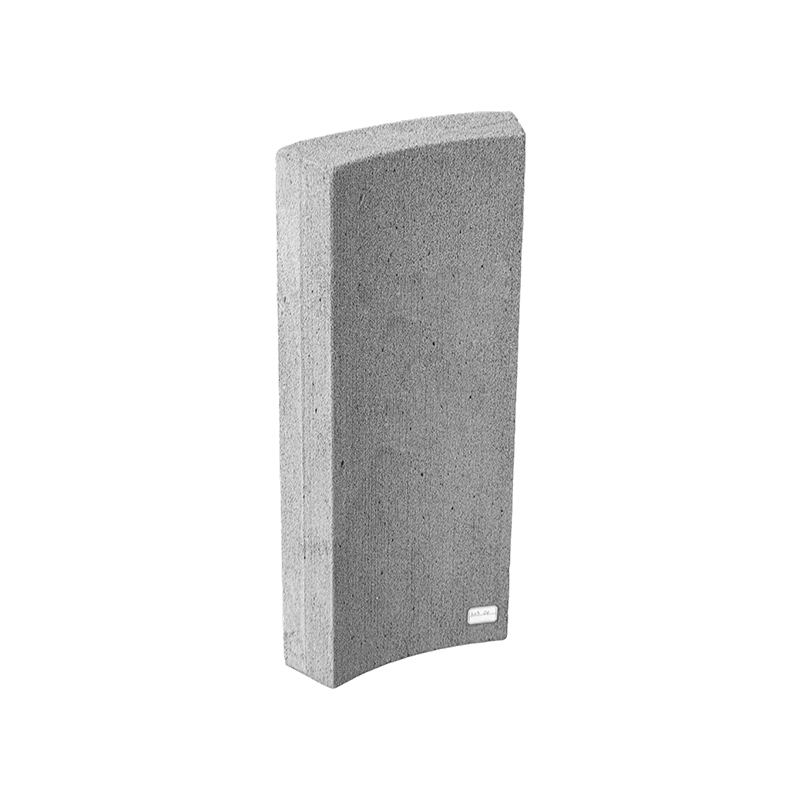

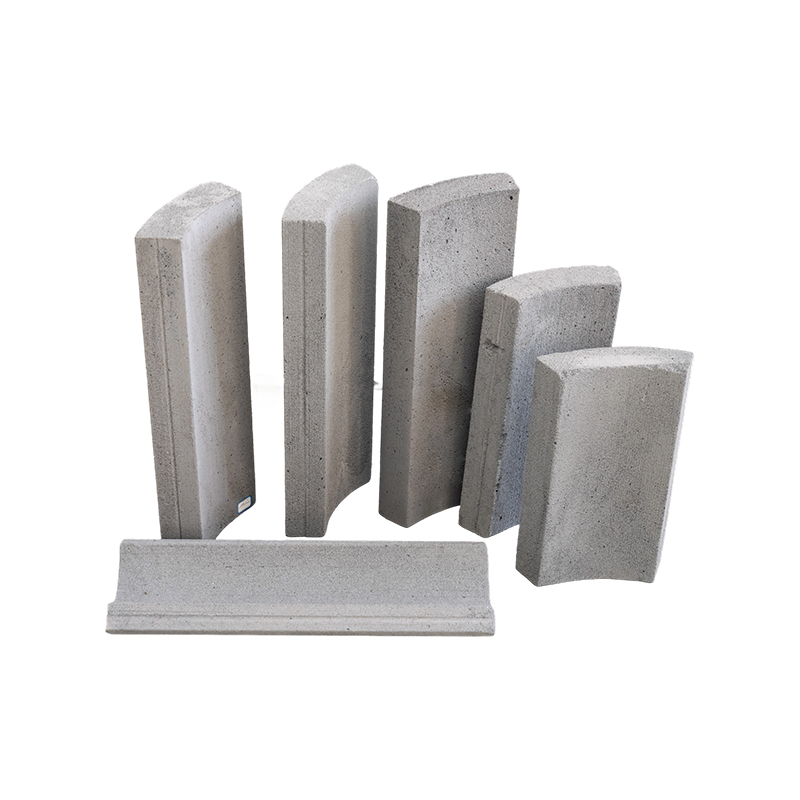

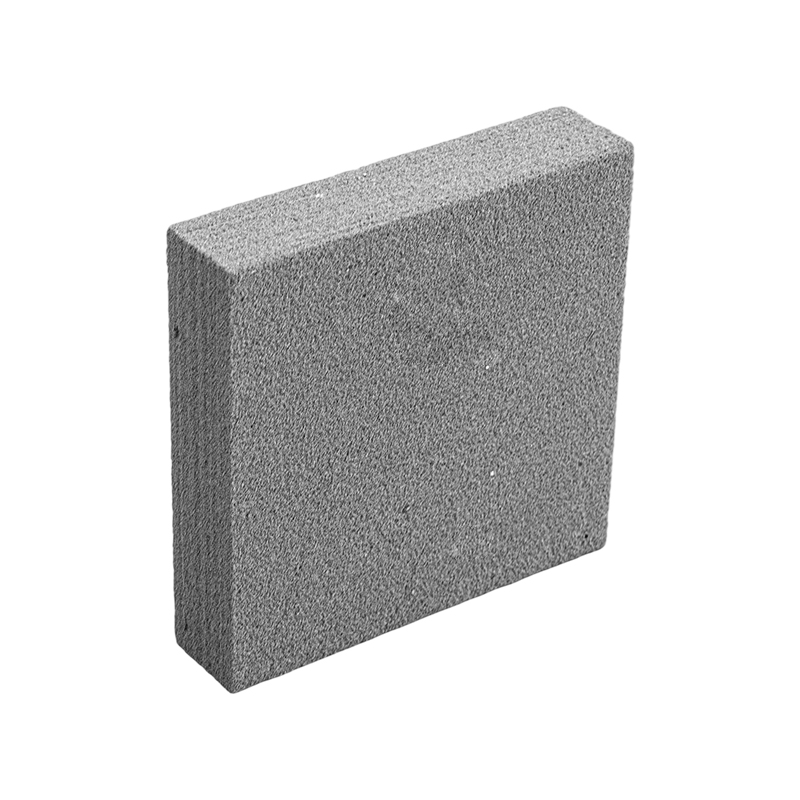

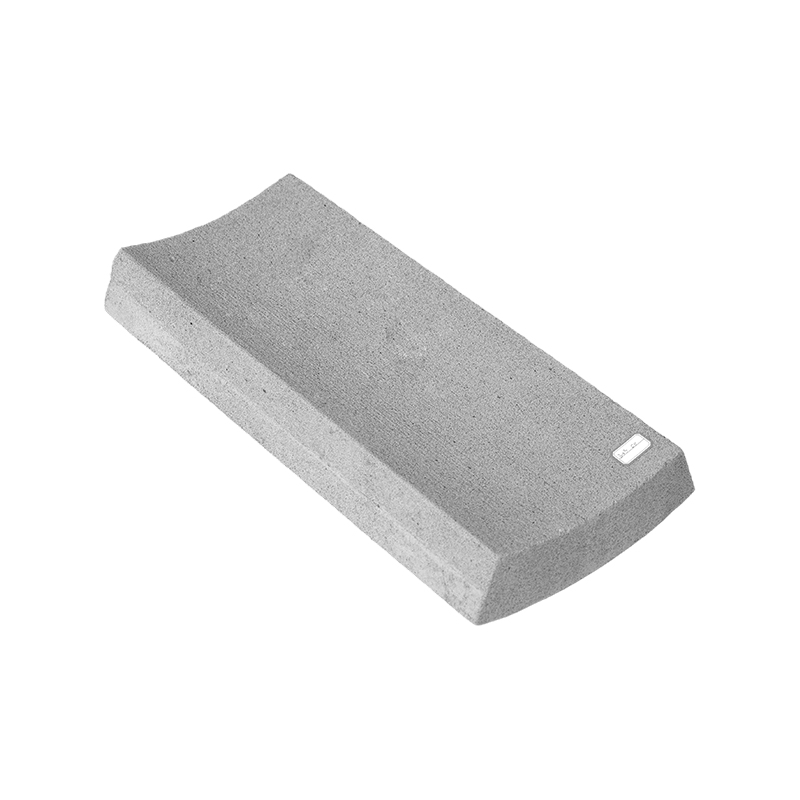

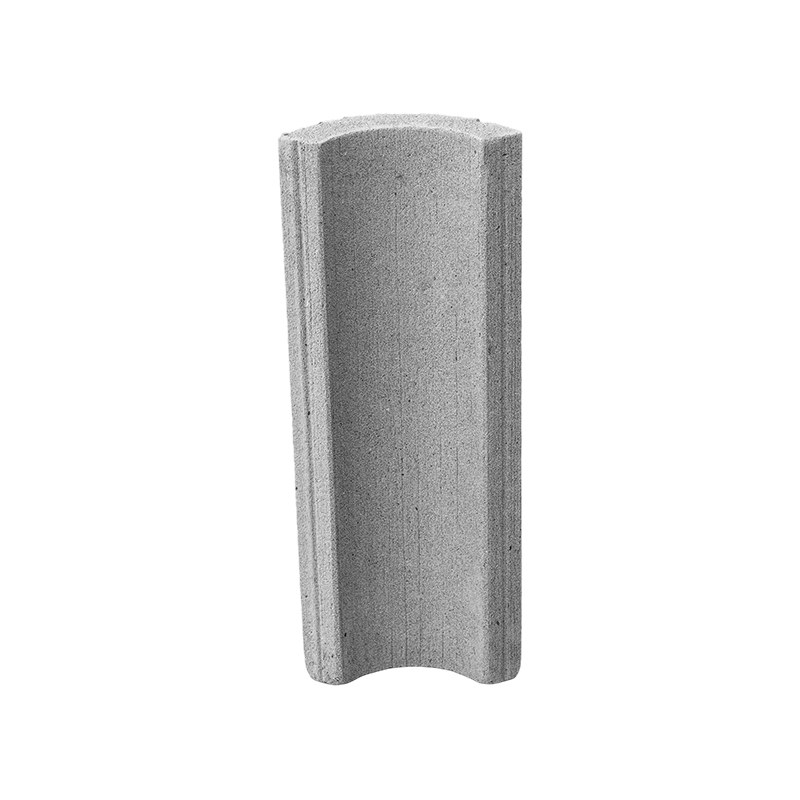

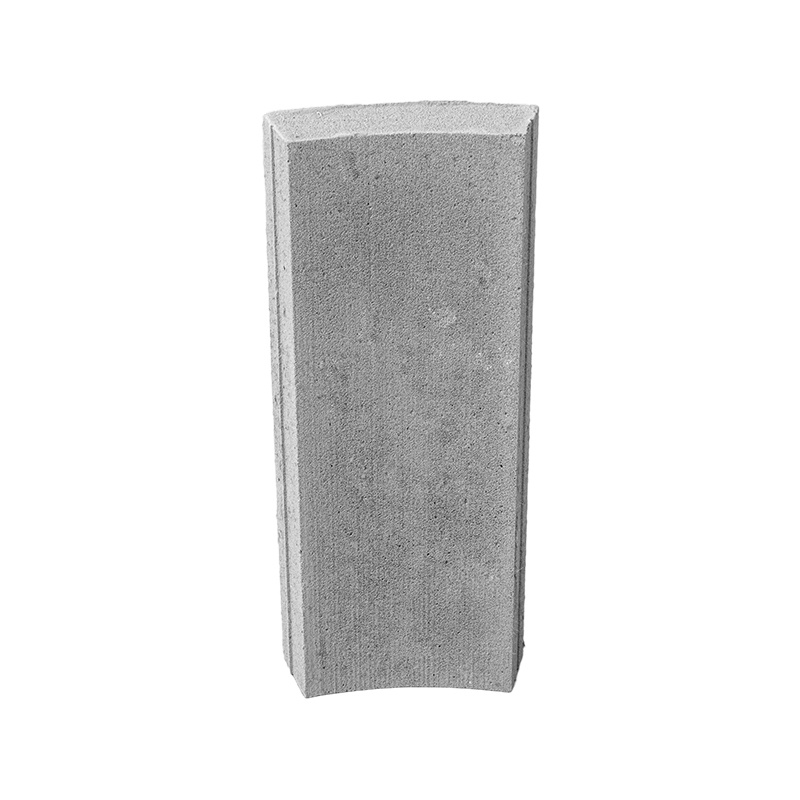

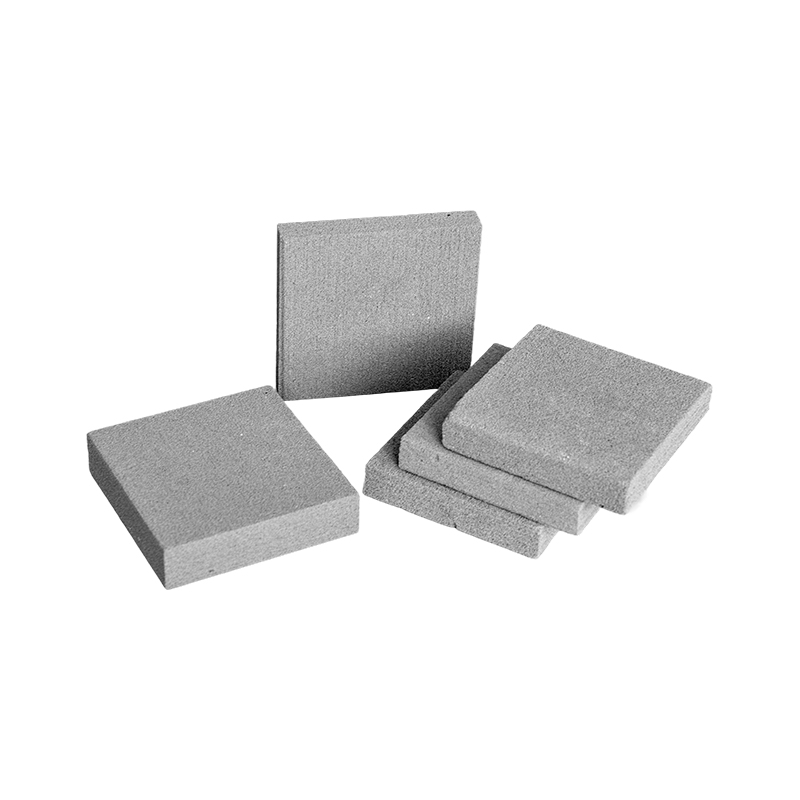

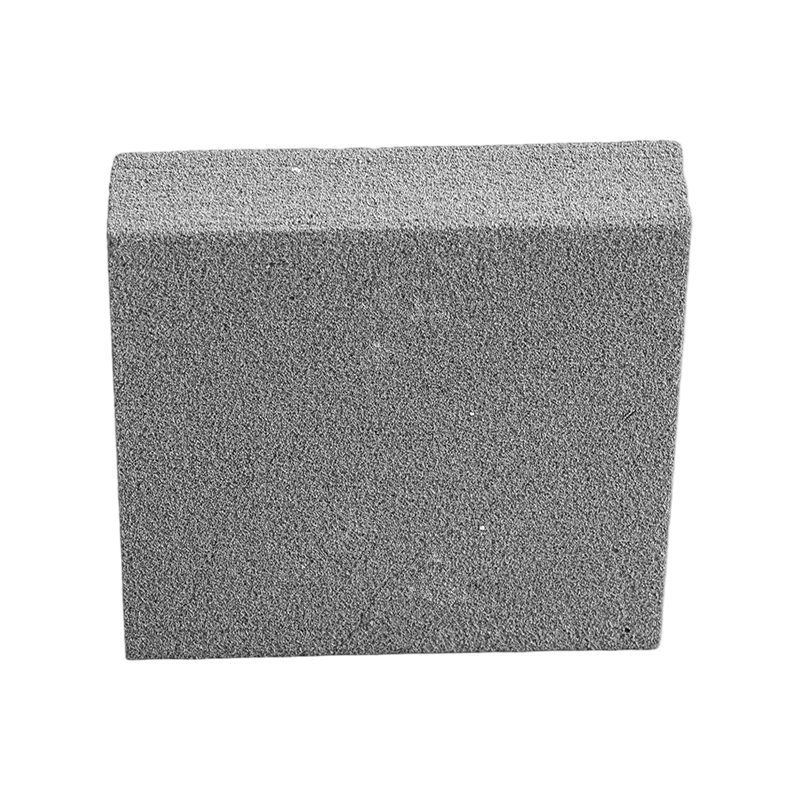

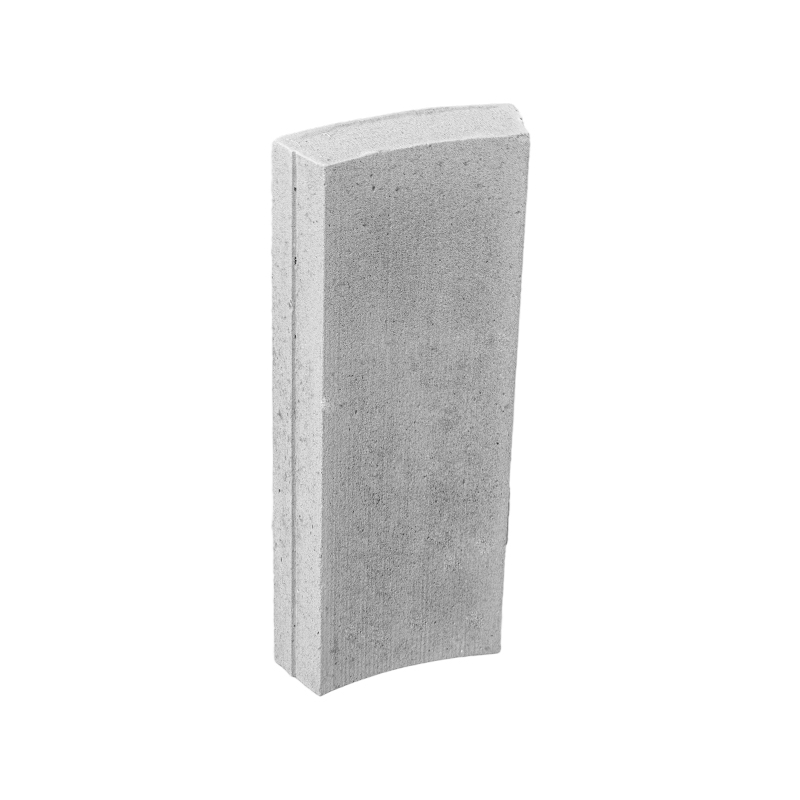

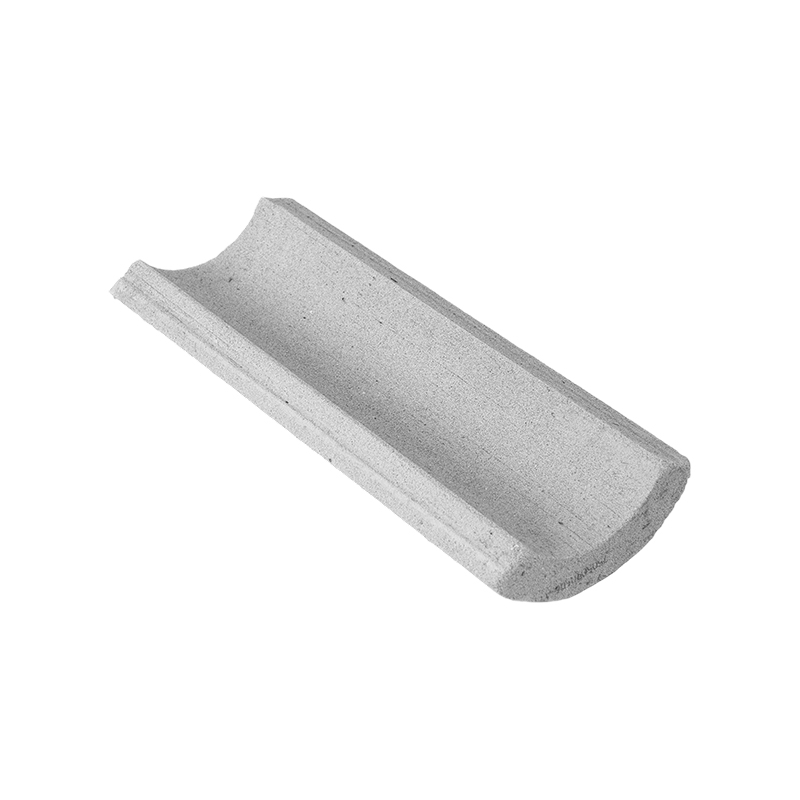

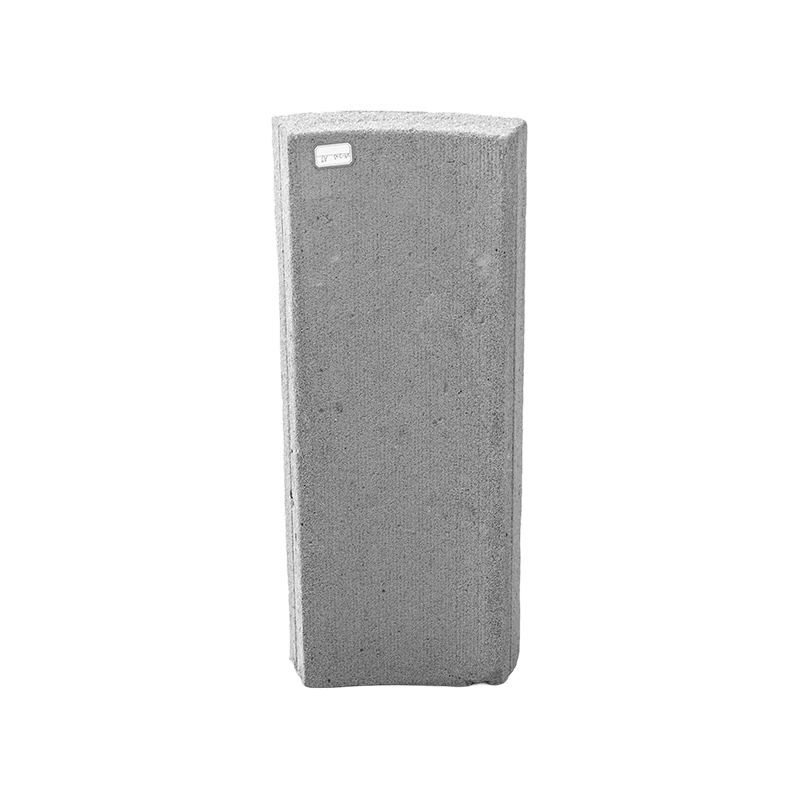

Size Flat Shell and tile Custom elbow/tee
Length L (mm) 600 2440 600 /
Width B (mm) 600 1220 250 - 300 /
Thickness D (mm) 10 - 60 30 - 80 40 - 80 80 - 160

1. Excellent waterproof performance: It has structural waterproof performance, and environmental moisture cannot penetrate into the material. After high-temperature cooking, the internal structure, strength and insulation performance of the material are not lost, ensuring the waterproof effect in long-term use.

2. Anti-corrosion: It contains a special preservative ingredient that can effectively avoid corrosion under insulation (CUI).

3. Durability: It has a compressive strength of ≥0.70 MPa, which is much higher than the industry standard requirements. It can maintain structural stability when under heavy pressure, and will not deform or damage. It is suitable for insulation applications of buildings and industrial equipment that need to withstand large loads.

4. Long service life: When installed and used in accordance with regulations, the calcium silicate used has superior physical strength and temperature resistance and can be used for more than 35 years.

5. High performance: It has excellent fireproof and waterproof properties, can prevent fire and water erosion, and improve the safety of buildings and equipment.

6. High cost performance: The raw materials use solid waste materials, which can be recycled repeatedly, the production and preparation process consumes low energy, the cost is controllable, and the economic benefits are high. The utilization of solid waste is green and environmentally friendly, and it also has significant social benefits.

7. Environmental protection and energy saving: Made of inorganic materials, it has good environmental performance and meets the requirements of modern green buildings and sustainable development.

8. Fast production and delivery: It adopts CNC cutting and molding technology with high production efficiency. It can be customized and shipped within 48 hours to meet customers' needs for fast delivery and ensure that the project progress is not affected.

1. Construction industry: Applicable to thermal insulation of walls, roofs, floors and other building parts to improve the energy efficiency and comfort of buildings

2. In dustrial equipment: Widely used in the insulation of high-temperature equipment, pipelines, storage tanks and other industrial facilities to ensure the normal operation and energy efficiency of the equipment.

3. Pipeline insulation: Applicable to the insulation of various pipeline systems to prevent heat loss and the formation of condensed water and extend the service life of the pipeline.

4. Special equipment and structural insulation: Applicable to the insulation needs of special shapes and structures, such as bent pipes, curved equipment, curved buildings, etc., providing flexible and diverse insulation solutions to prevent heat loss and equipment overheating.
