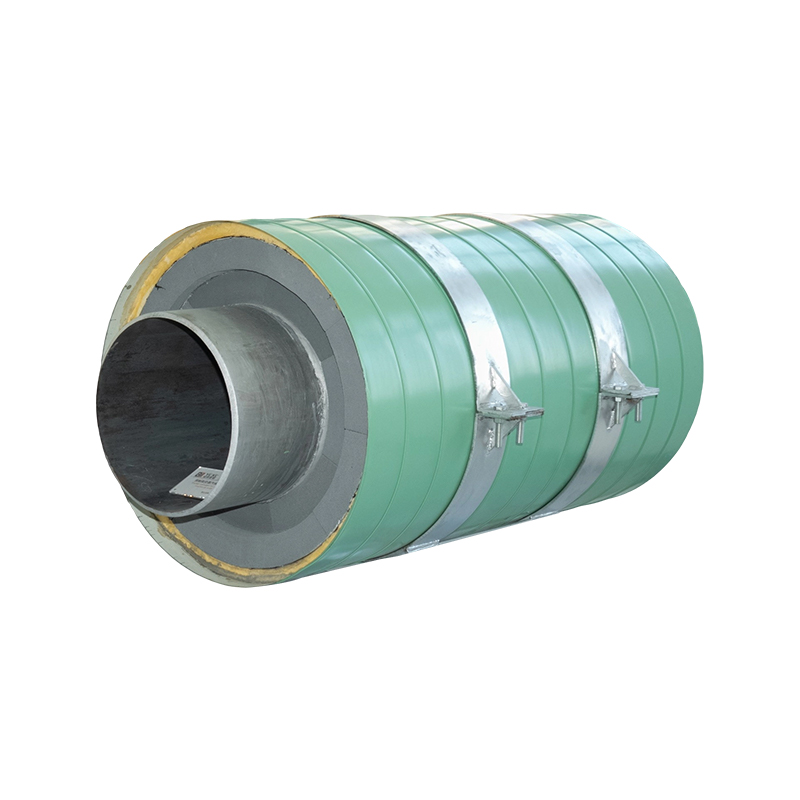

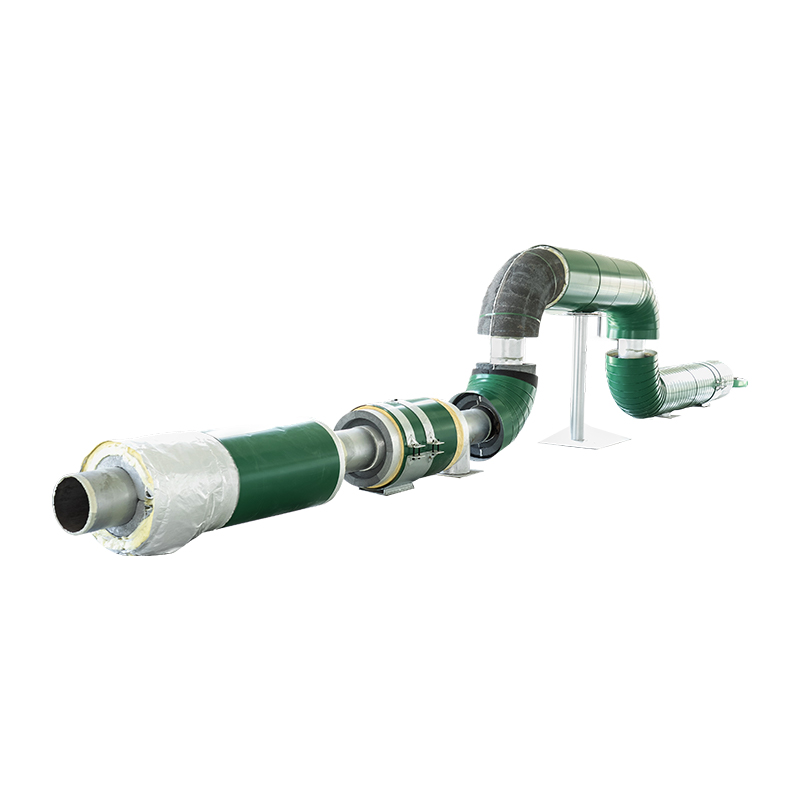

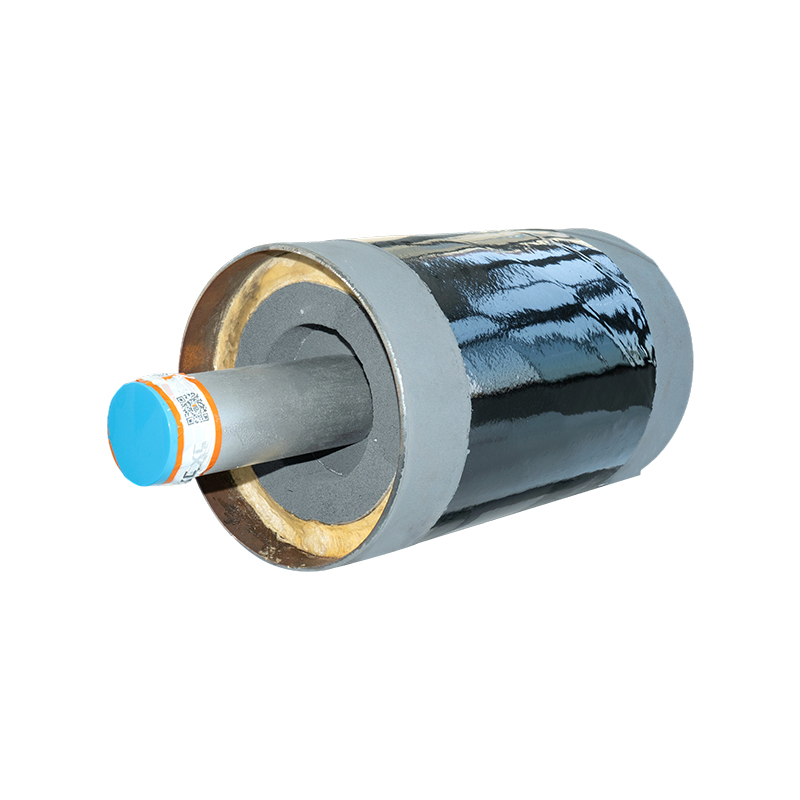

Wholesale Foamed Calcium Silicate Prefabricated Steam Pipeline Supplier, OEM Factory - Zhejiang Yichuang New Material Technology Co., Ltd

Specification Table of WBK Series Prefabricated Steam Insulation Pipe

Nominal diameter	Specification of working steel pipe	Specifications of the outer protective layer	Thickness of the composite insulation layer (mm）			Weight	Product length
Nominal diameter	(mm）	（mm）	Shock-absorbing layer	Support layer	Aggregation layer	（kg/m）	(m)
DN100	Φ108×4	Φ321×0.5	6	80	20	10	12.5
DN125	Φ133×4.5	Φ346×0.5	6	80	20	14	12.5
DN150	Φ159×5	Φ400×0.5	6	90	25	19	12.5
DN200	Φ219×6	Φ502×0.5	6	110	25	31	12.5
ND250	Φ273×7	Φ567×0.5	10	115	25	46	12.5
DN300	Φ325×8	Φ636×0.5	10	120	25	63	12.5
DN350	Φ377×8	Φ738×0.8	10	140	30	73	12.5
DN400	Φ426×10	Φ788×0.8	10	140	30	103	12.5
DN450	Φ478×10	Φ862×0.8	10	150	30	115	12.5
DN500	Φ529×10	Φ911×0.8	10	150	30	128	12.5
DN600	Φ630×10	Φ1032×1.0	10	160	30	153	12.5
DN700	Φ720×10	Φ1152×1.0	10	170	35	175	12.5
DN800	Φ820×10	Φ1282×1.0	10	180	40	200	12.5
DN900	Φ920×10	Φ1412×1.0	10	190	45	224	12.5

1. High efficiency: The prefabrication and assembly of the pipeline is completed in the factory, avoiding harsh construction conditions, ensuring the insulation quality, ensuring product quality and consistency, reducing the complexity and uncertainty of on-site construction, and making the overall heat network achieve the best design effect.

2 .Zero thermal bridge effect: The clamp-type bracket can be used directly on the outer wall of the pipeline to achieve the effect of "zero thermal bridge", solving the problem of "thermal bridge effect" of traditional insulation pipelines and ensuring that the heat loss of the pipeline at the bracket is minimized.

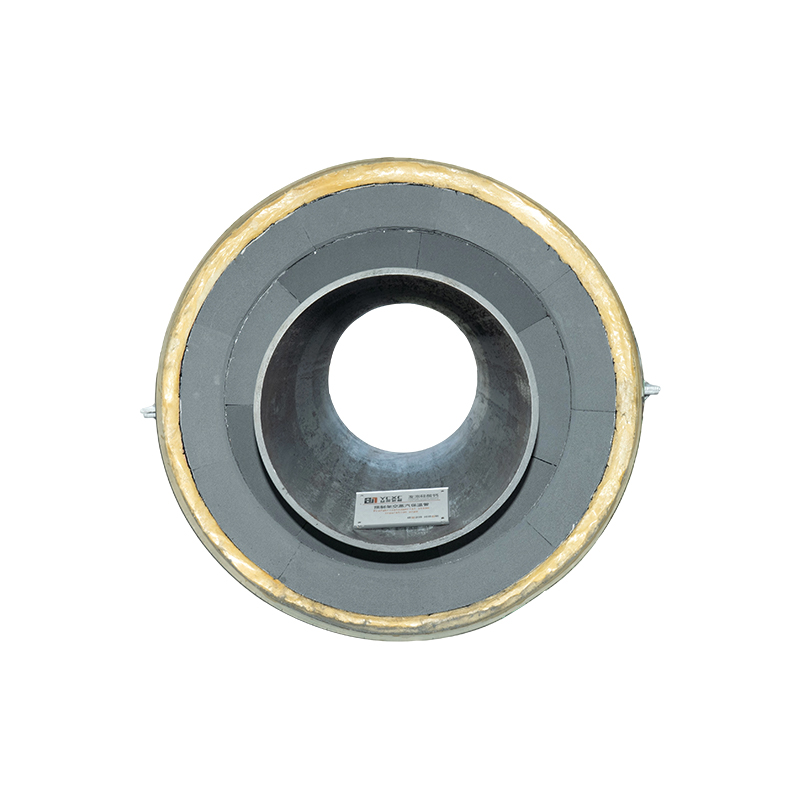

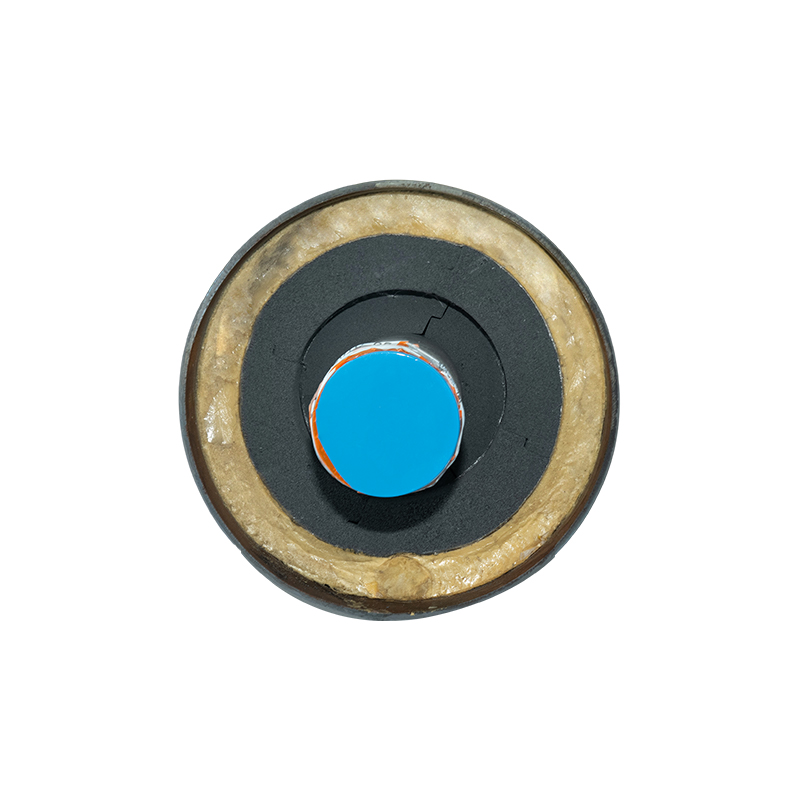

3. Stable structure: The three-layer composite insulation structure of "soft tile foam" is adopted, from the inside to the outside, it is the working pipe, shockproof sealing layer, reflection layer, hard insulation layer (foamed calcium silicate), reflection layer, polyurethane layer and outer sheath. The structural design is reasonable and has good compression, tensile and corrosion resistance.

4. High load-bearing capacity: The outer sheath adopts high-strength materials and advanced manufacturing processes of color steel plates or aluminum alloy spiral ducts to ensure that the pipeline has sufficient strength and rigidity to withstand various external loads. It has good waterproof and anti-corrosion properties, ensuring the long-term stable operation of the pipeline in harsh environments.

5. Short construction period: Through factory prefabrication and on-site modular construction, the construction is convenient and fast, shortening the construction period, reducing construction costs, and ensuring that the pipeline has high stability and reliability during installation and use.

6. Maintenance-free: The pipeline design is reasonable, the raw materials use solid waste materials, have excellent performance, can be recycled repeatedly, can maintain good working conditions for a long time, and do not require frequent maintenance and overhaul, which has social benefits.

7. High cost performance: The use of foamed calcium silicate prefabricated overhead steam pipelines is 10% lower than the traditional hard prefabricated overhead pipes!

1. Construction industry: Applicable to thermal insulation of walls, roofs, floors and other building parts to improve the energy efficiency and comfort of buildings

2. In industrial equipment: Widely used in the insulation of high-temperature equipment, pipelines, storage tanks and other industrial facilities to ensure the normal operation and energy efficiency of the equipment.

3 . Pipeline insulation: Applicable to the insulation of various pipeline systems to prevent heat loss and the formation of condensed water and extend the service life of the pipeline.

4. Special equipment and structural insulation: Applicable to the insulation needs of special shapes and structures, such as bent pipes, curved equipment, curved buildings, etc., providing flexible and diverse insulation solutions to prevent heat loss and equipment overheating.
