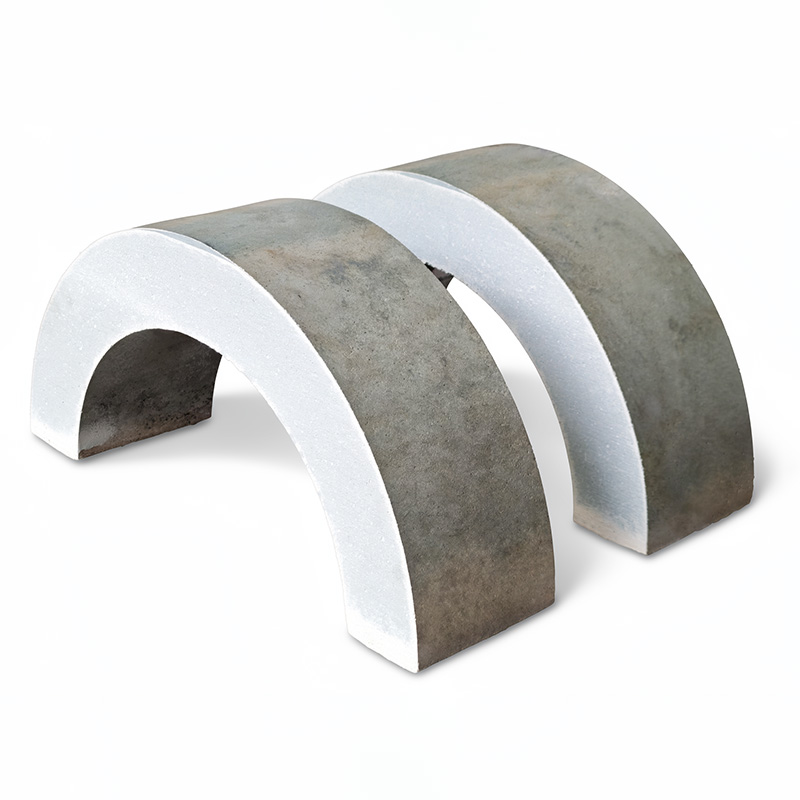

High-Temp Heat Insulation Segment Tile

1. Excellent Temperature Resistance & Adaptability

It features a long-term temperature resistance up to 650℃, perfectly adapting to the working conditions of most medium and high temperature saturated/superheated steam pipelines.

2. Outstanding Comprehensive Cost Performance

With easily available raw materials and moderate production cost, it is a standard configured product for thermal pipe networks, power plants, and petrochemical projects.

3. Balanced & Stable Performance

It has a thermal conductivity of ≤0.15W/(m·K) at 350℃ with excellent thermal insulation effect; its compressive strength is≥20MPa, and flexural strength is ≥2.0MPa, with superior load-bearing capacity, and is not prone to fragmentation and pulverization.

4. Safety & Environmental Protection

It is asbestos-free, Class A non-combustible, with stable chemical properties and no release of toxic and harmful substances.

5. Superior Anti-Corrosion & Durability

With low chloride ion content, it can effectively avoid Corrosion Under Insulation (CUI) of pipelines. It has a design service life of more than 30 years, and its performance can be fully restored after being damp and dried.

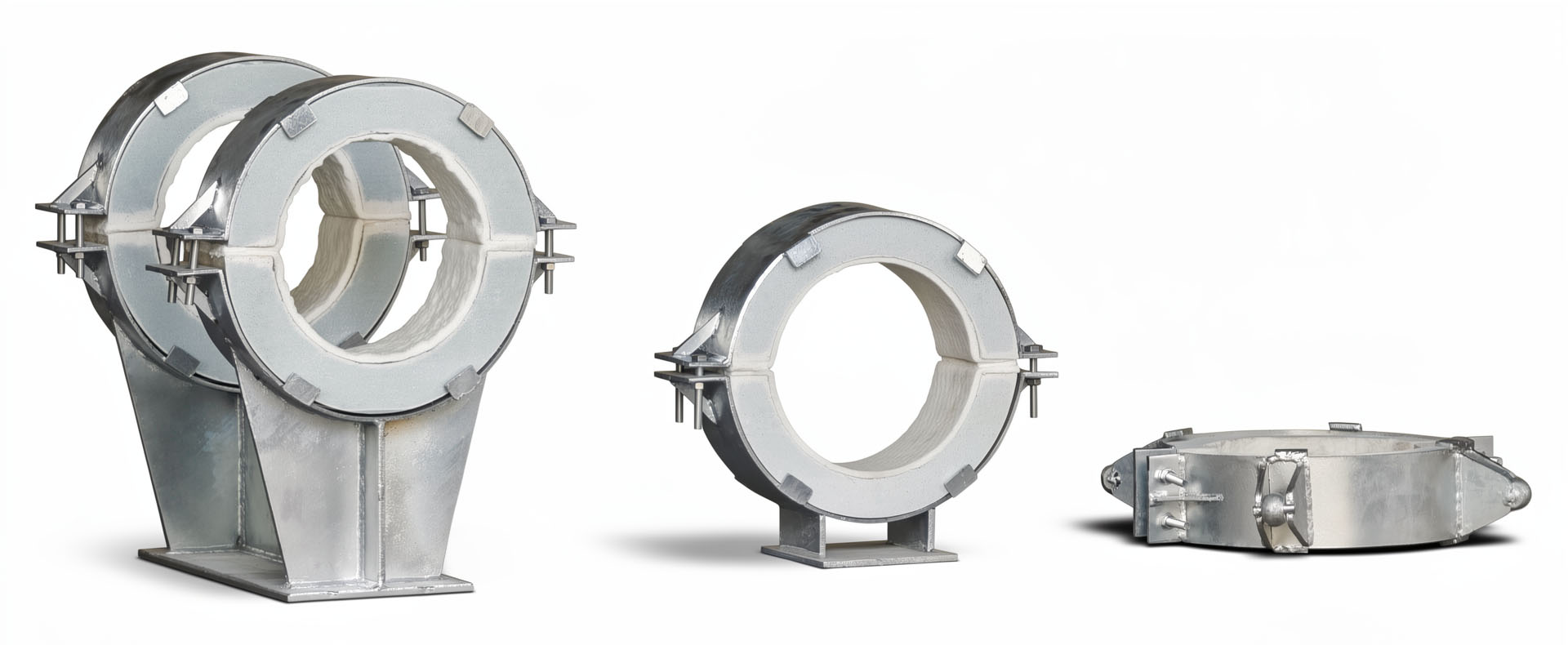

The High-Temp Heat Insulation Segment Tile (High-Temperature Thermal Insulation Support Ring) is a special supporting product dedicated to pipeline pipe supports, hangers, and supports, which can stably adapt to long-term high-temperature working conditions up to 650℃. The product completely overcomes the industry pain points of traditional thermal insulation materials, such as high brittleness and easy fragmentation, insufficient thermal insulation efficiency, pipeline corrosion, and short service life. It is widely used in core scenarios including main steam pipelines of power plants, ultra-high temperature process pipelines in the chemical industry, high-temperature pipelines of nuclear power plants, and low-energy consumption projects of long-distance heat transmission networks.
