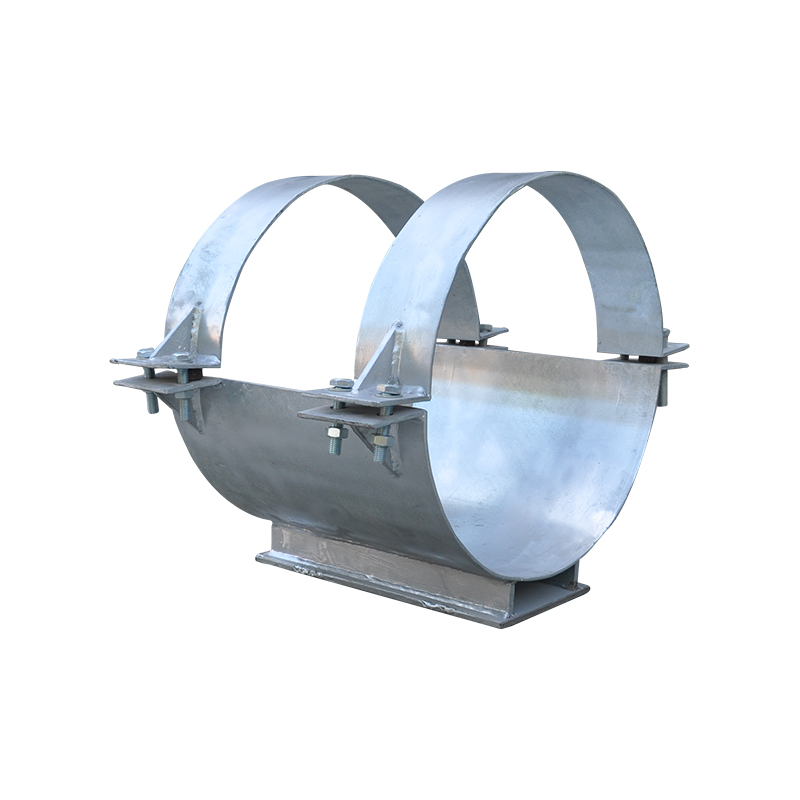

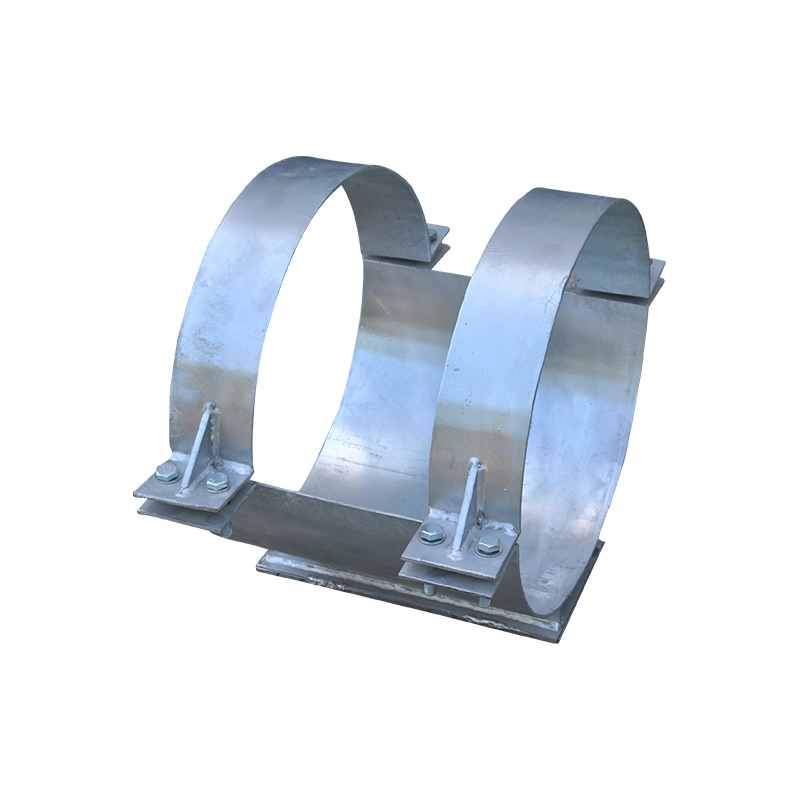

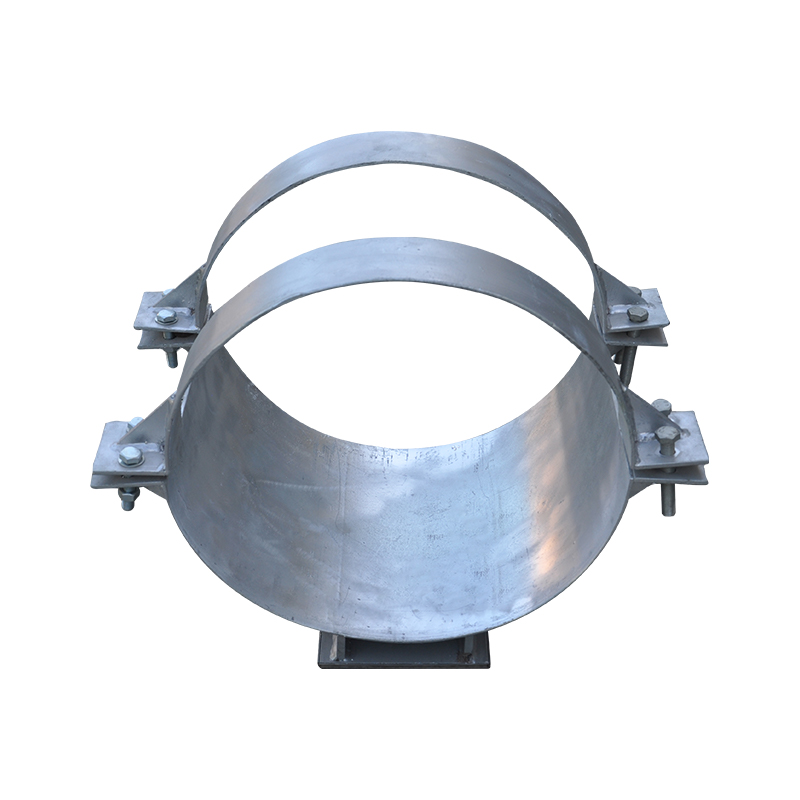

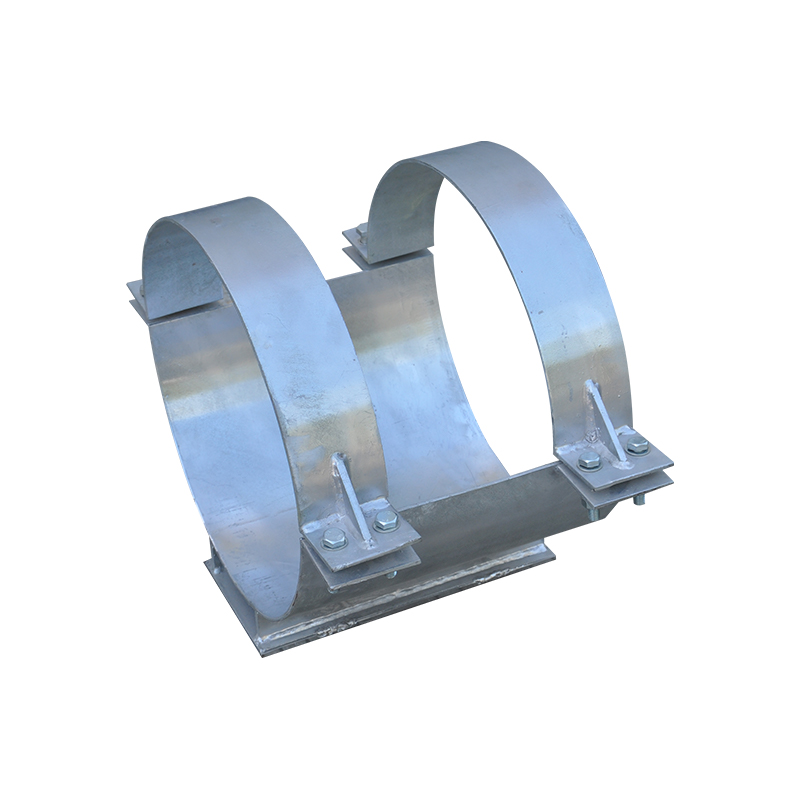

Product Parameters

parameter	index
Pipe diameter support	DN50～DN1000
Temperature range	≤650℃
Pressure level	≤10MPa

Customized service: Non-standard design drawings are provided within 72 hours and can be customized according to the actual needs of the customer's project.

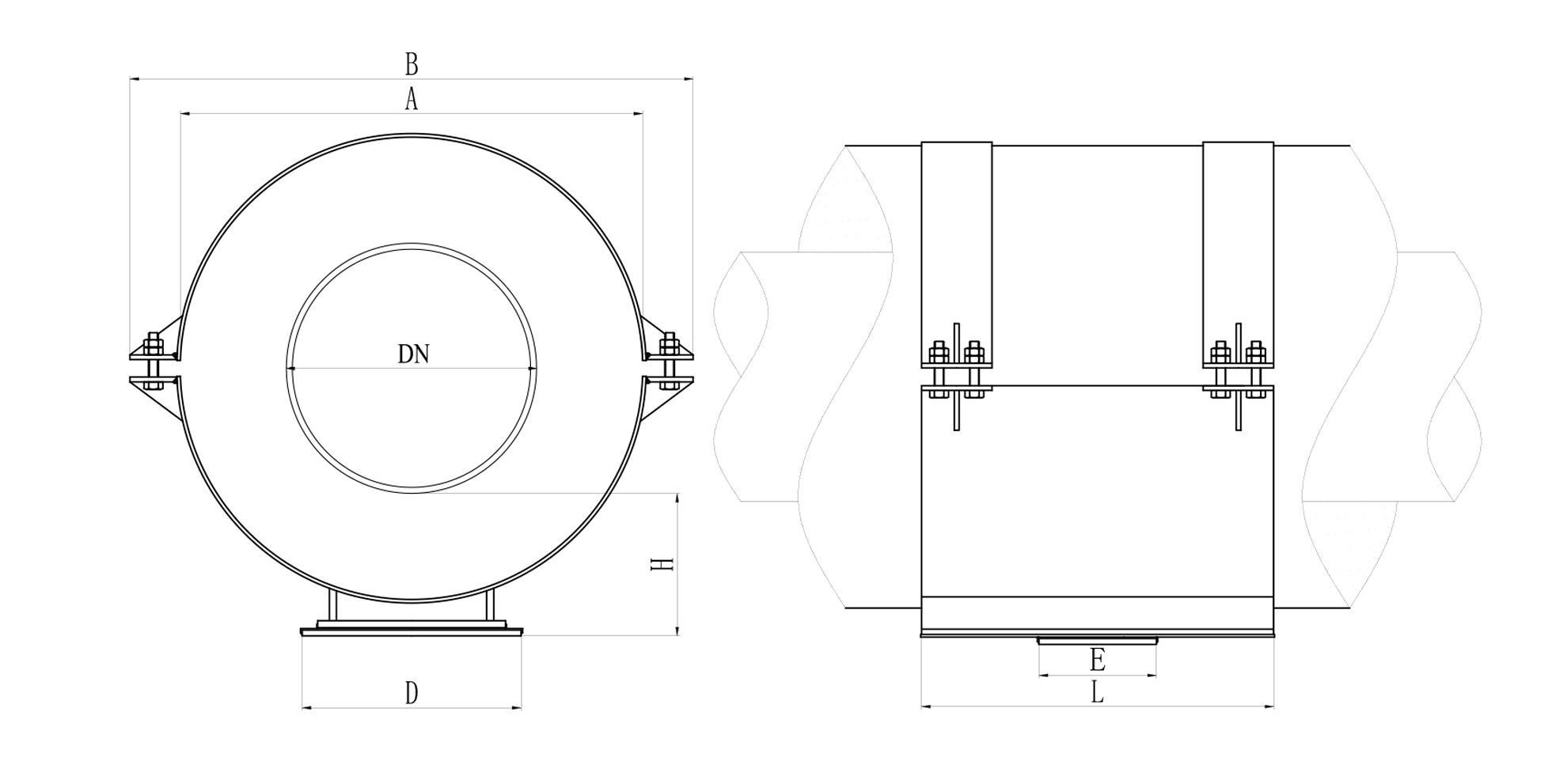

Pipe bracket size table (unit: mm)
Serial number	DN Nominal diameter	A Adjust according to design	B Adjust according to design	D	E	H Adjust according to design	L Sliding/Guide Bracket Axial displacement X			Maximum vertical load N






							X≤150 (2 clamps)	150＜X≤280 (2 clamps)	150＜X≤280 (3 clamps)


1	50	277	357	220	150	100	400	600	800	1600
2	65	296	376	220	150	100	400	600	800	2180
3	80	322	402	250	150	150	400	600	800	2970
4	100	341	421	250	150	150	400	600	800	3550
5	125	366	446	260	150	200	400	600	800	4620
6	150	412	492	280	150	200	400	600	800	6500
7	200	492	572	300	180	300	400	600	800	12000
8	250	574	654	350	180	300	400	600	800	18500
9	300	646.2	746.2	400	200	350	400	600	800	25800
10	350	718.2	798.2	420	200	350	400	600	800	36500
11	400	787.2	857.2	450	200	350	400	600	800	48700
12	450	861.2	941.2	500	200	400	400	600	800	60000
13	500	921.2	1001.2	550	200	400	400	600	800	77500
14	600	1042	1122	600	200	400	400	600	800	122000
15	700	1152	1232	650	250	400	400	600	800	133800
16	800	1272	600	700	250	500	400	600	800	181000
17	900	1392	650	750	250	500	500	700	900	256000
18	1000	1532	700	800	250	500	500	700	900	305000

Note: The specifications in the table are our company's conventional standard specifications. All products can be customized according to the actual needs of the project. For specifications above DN1000, please contact our company for separate design.

Product Advantages

1. High efficiency: The prefabrication and assembly of the pipeline is completed in the factory, avoiding harsh construction conditions, ensuring the insulation quality, ensuring product quality and consistency, reducing the complexity and uncertainty of on-site construction, and making the overall heat network achieve the best design effect.

2 .Zero thermal bridge effect: The clamp-type bracket can be used directly on the outer wall of the pipeline to achieve the effect of "zero thermal bridge", solving the problem of "thermal bridge effect" of traditional insulation pipelines and ensuring that the heat loss of the pipeline at the bracket is minimized.

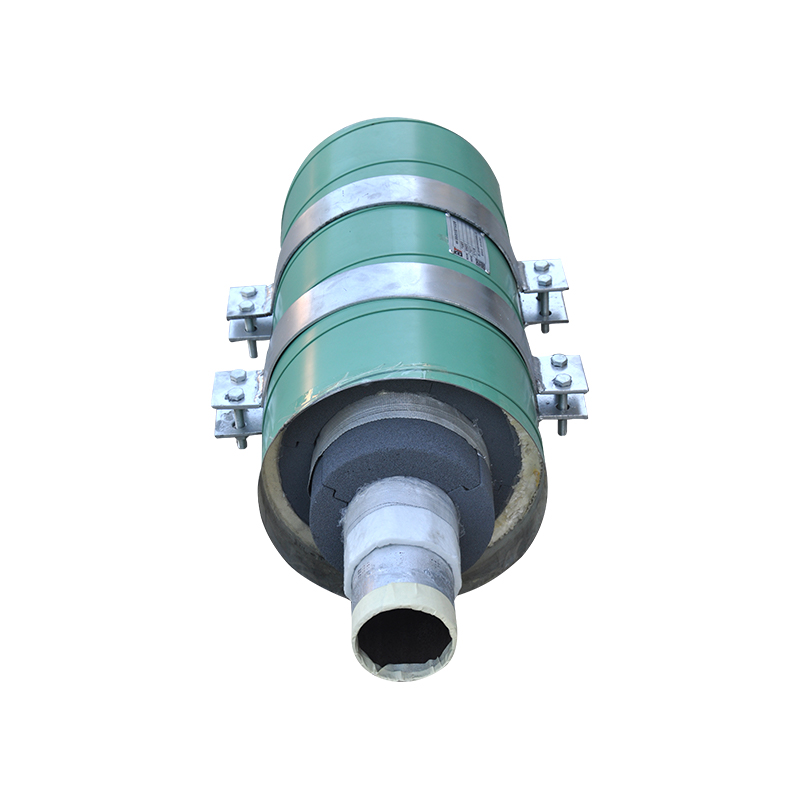

3. Stable structure: The three-layer composite insulation structure of "soft tile foam" is adopted, from the inside to the outside, it is the working pipe, shockproof sealing layer, reflection layer, hard insulation layer (foamed calcium silicate), reflection layer, polyurethane layer and outer sheath. The structural design is reasonable and has good compression, tensile and corrosion resistance.

4. High load-bearing capacity: The outer sheath adopts high-strength materials and advanced manufacturing processes of color steel plates or aluminum alloy spiral ducts to ensure that the pipeline has sufficient strength and rigidity to withstand various external loads. It has good waterproof and anti-corrosion properties, ensuring the long-term stable operation of the pipeline in harsh environments.

5. Short construction period: Through factory prefabrication and on-site modular construction, the construction is convenient and fast, shortening the construction period, reducing construction costs, and ensuring that the pipeline has high stability and reliability during installation and use.

6. Maintenance-free: The pipeline design is reasonable, the raw materials use solid waste materials, have excellent performance, can be recycled repeatedly, can maintain good working conditions for a long time, and do not require frequent maintenance and overhaul, which has social benefits.

7. High cost performance: The use of foamed calcium silicate prefabricated overhead steam pipelines is 10% lower than the traditional hard prefabricated overhead pipes!

Product Application

1. Construction industry: Applicable to thermal insulation of walls, roofs, floors and other building parts to improve the energy efficiency and comfort of buildings

2. In industrial equipment: Widely used in the insulation of high-temperature equipment, pipelines, storage tanks and other industrial facilities to ensure the normal operation and energy efficiency of the equipment.

3 . Pipeline insulation: Applicable to the insulation of various pipeline systems to prevent heat loss and the formation of condensed water and extend the service life of the pipeline.

4. Special equipment and structural insulation: Applicable to the insulation needs of special shapes and structures, such as bent pipes, curved equipment, curved buildings, etc., providing flexible and diverse insulation solutions to prevent heat loss and equipment overheating.
