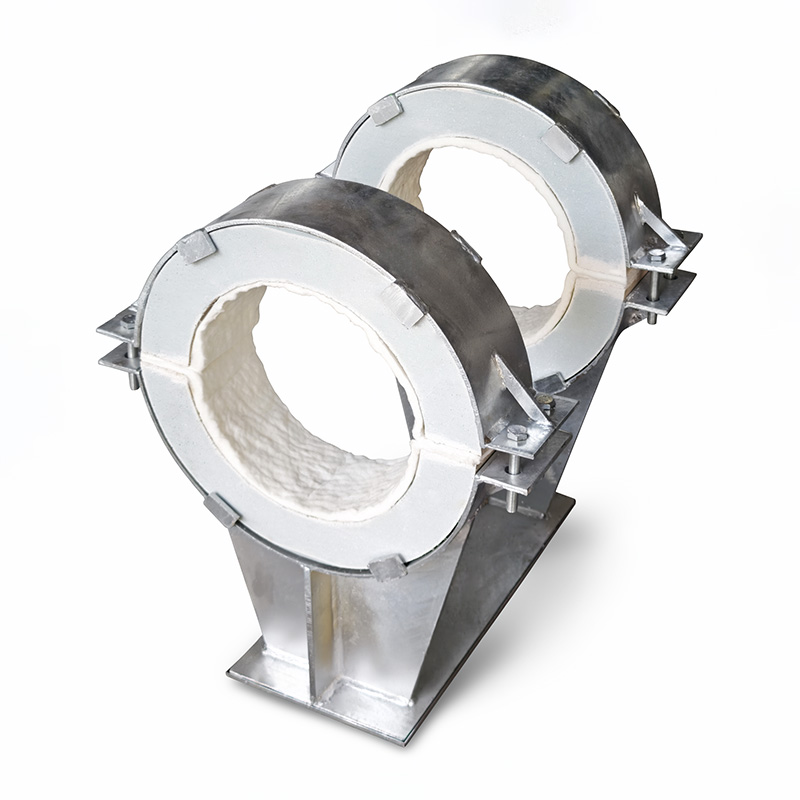

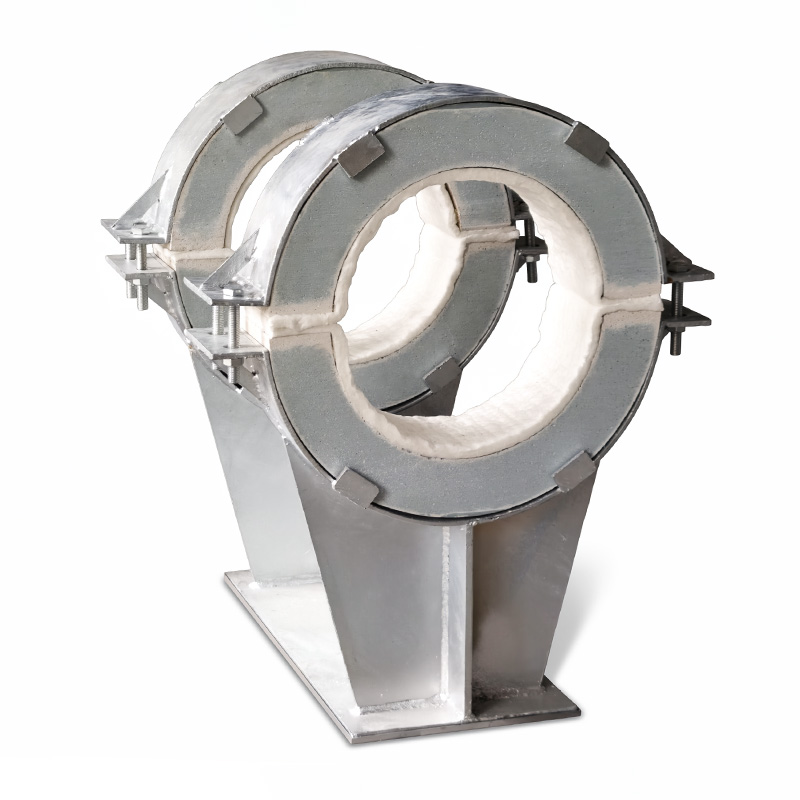

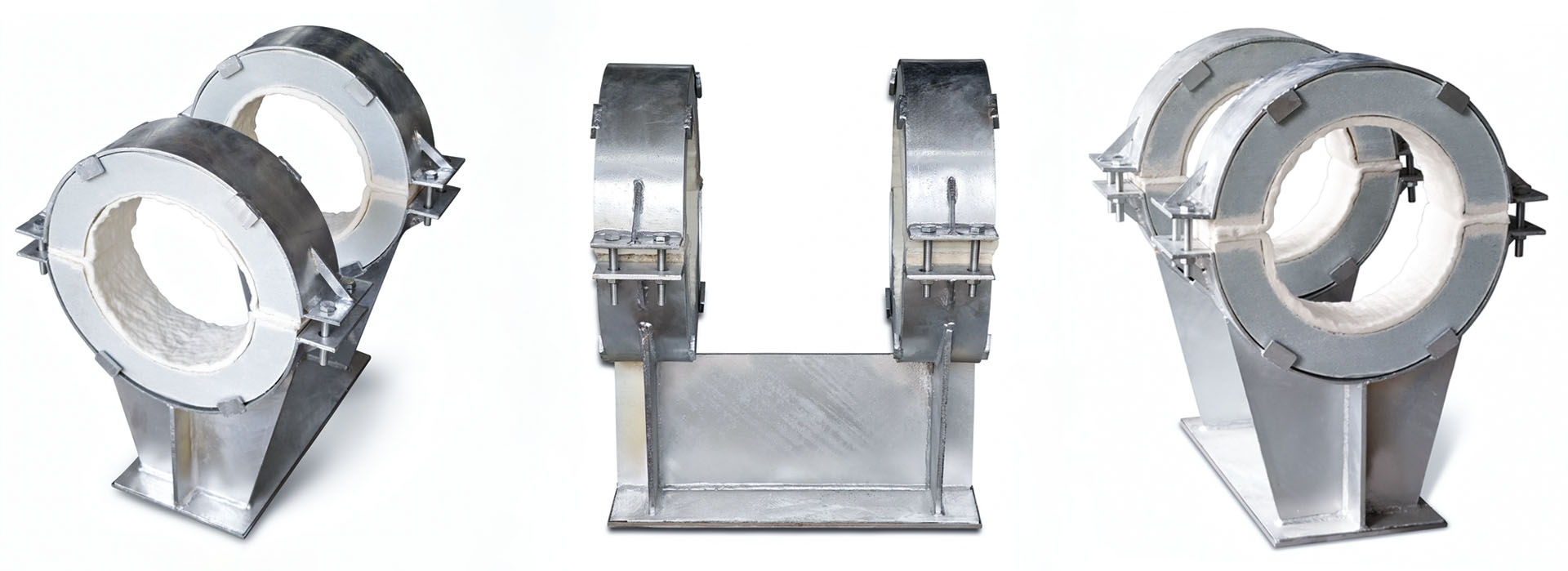

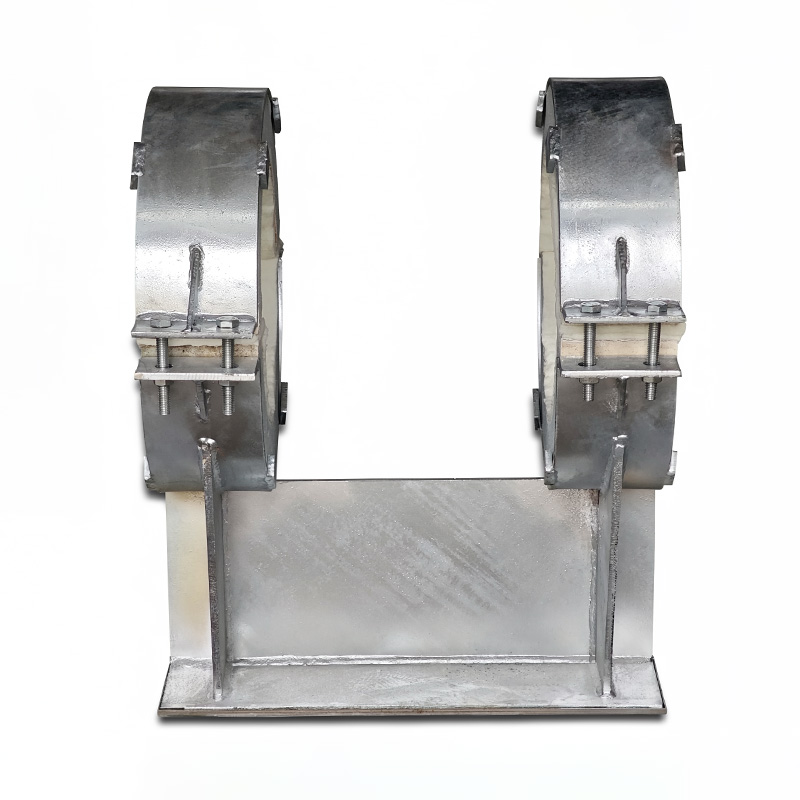

Wholesale High-Temp Energy-Saving Insulated Pipe Support Supplier, OEM Factory - Zhejiang Yichuang New Material Technology Co., Ltd

Product Parameters

parameter	index
Pipe Diameter Support Range	DN50～DN1000
Temperature range	≤650℃
Pressure Rating	≤10MPa

Customization Service: Non-standard design drawings are provided within 72 hours, and all products can be customized according to the actual engineering requirements of customers.

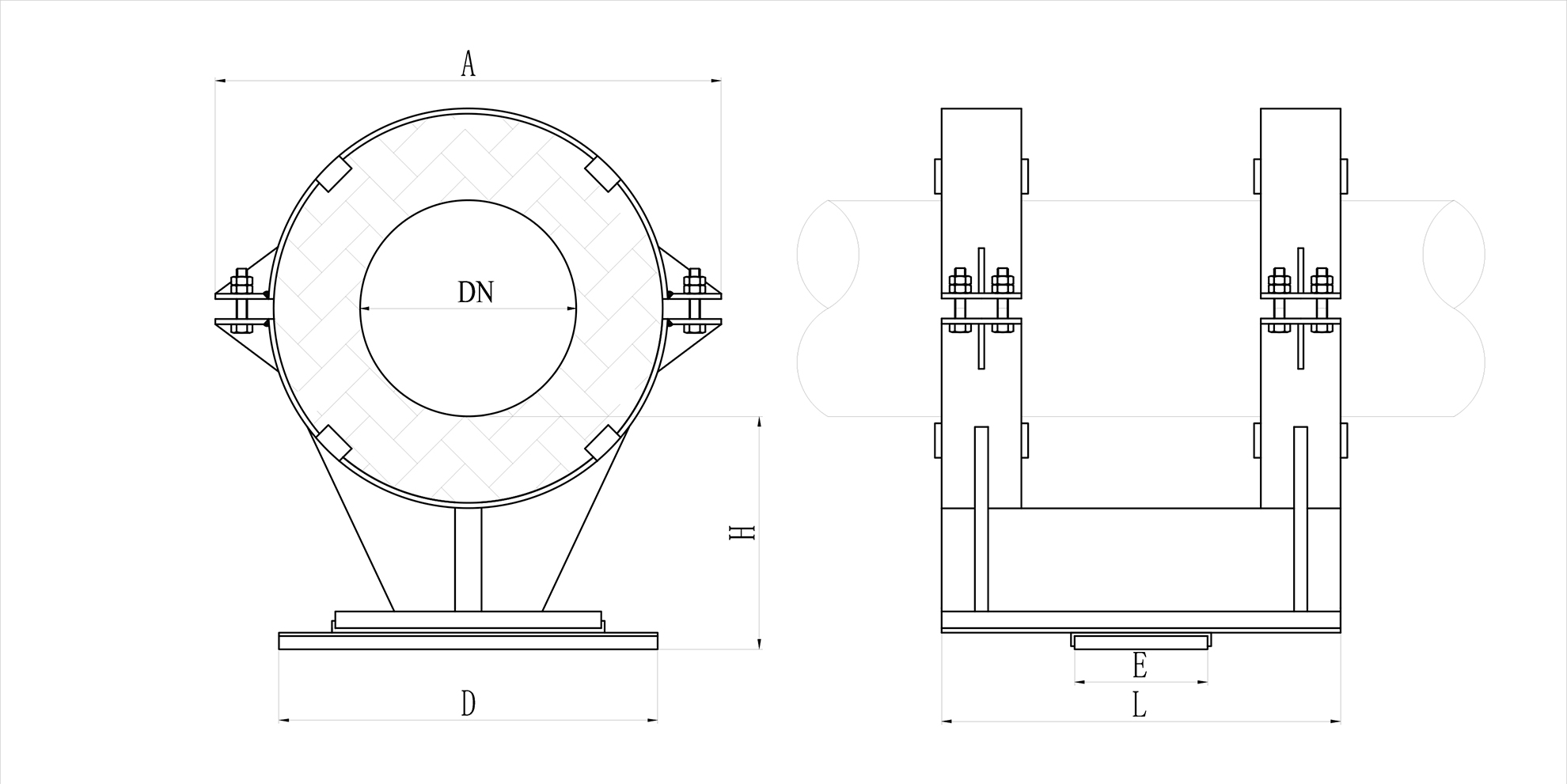

Pipe bracket size table (unit: mm)
Serial number	DN Nominal diameter	A	D	E	H Adjust according to design	L Sliding/Guide Bracket Axial displacement X			Maximum vertical load N






						X≤150 (2 clamps)	150＜X≤280 (2 clamps)	150＜X≤280 (3 clamps)


1	50	184	220	150	200	400	600	800	1600
2	65	209	220	150	200	400	600	800	2180
3	80	209	250	150	250	400	600	800	2970
4	100	234	250	150	250	400	600	800	3550
5	125	267	260	180	250	400	600	800	4620
6	150	319	280	180	250	400	600	800	6500
7	200	389	300	200	250	400	600	800	12000
8	250	453	350	200	250	400	600	800	18500
9	300	522	400	200	250	400	600	800	25800
10	350	574	420	200	250	400	600	800	36500
11	400	626	450	200	250	400	600	800	48700
12	450	674	500	200	250	400	600	800	60000
13	500	784	550	200	250	400	600	800	77500
14	600	880	600	200	250	400	600	800	122000
15	700	980	650	250	250	400	600	800	133800
16	800	1080	700	250	300	400	600	800	181000
17	900	1180	750	250	300	500	700	900	256000
18	1000	1280	800	250	300	500	700	900	305000

Note: The table above lists our conventional standard specifications. All products can be customized according to actual engineering requirements. For specifications above DN1000, please contact our company for a separate design.

Product Advantages

1. Ultra-Low Energy Consumption, Leading Thermal Insulation Performance

The core adopts self-developed insulation tiles, with a thermal conductivity of ≤0.15W/(m·K) at 350℃, which greatly blocks the thermal bridging effect, reduces pipeline heat loss, and cuts down operation energy consumption costs.

2. Excellent Temperature Resistance, Wide Adaptability

It features a long-term temperature resistance up to 650℃, perfectly adapts to medium and high temperature saturated/superheated steam pipelines, and can stably cope with extremely high-temperature scenarios such as power plants and chemical industries without high-temperature performance degradation.

3. High-Strength Load-Bearing, Stable Damage Resistance

The core insulation unit has a compressive strength ≥20MPa and flexural strength ≥2.0MPa, with excellent load-bearing capacity. It solves the problems of easy fragmentation and pulverization of traditional materials and ensures the table operation of pipelines.

4. Long-Term Anti-Corrosion, CUI Risk Avoidance

With a low chloride ion formula design and stable chemical properties, it fundamentally avoids the problem of pipeline Corrosion Under Insulation (CUI), protects the pipe base material, and extends the service life of the system.

5. Safe and Environmentally Friendly, Full-Cycle Stability

It is asbestos-free, Class A non-combustible, and releases no harmful substances at high temperatures, complying with environmental protection and fire protection requirements. Its performance can be fully restored after being damp and dried, with a design service life of≥30 years, which reduces operation and maintenance costs.

6. Cost-Effective, Strong Implementability

It is compatible with existing pipeline design and installation specifications, and can be quickly implemented in both new projects and old pipeline renovations.

Product Application

The High-Temp Energy-Saving Insulated Pipe Support is used for fixing and load-bearing of pipeline systems, serving as guide, sliding, and fixed supports. Equipped with core self-developed high-temperature resistant insulation tiles, it solves the industry pain points of traditional pipe supports, such as excessive heat loss, easy fragmentation, pipeline corrosion, and short service life. It can be adapted to long-term high-temperature working conditions up to 650℃, and is an ideal thermal insulation support solution for pipeline systems in thermal power, power plant, petrochemical, and other fields.
